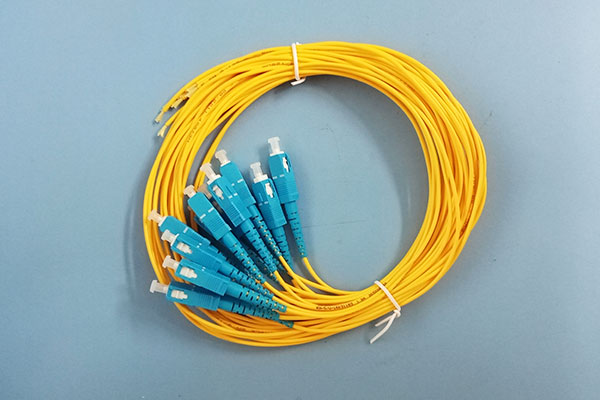

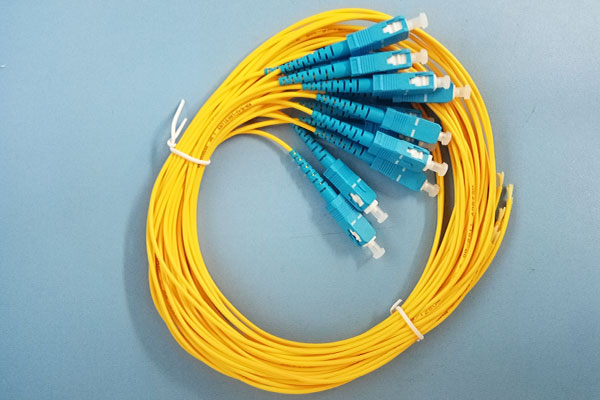

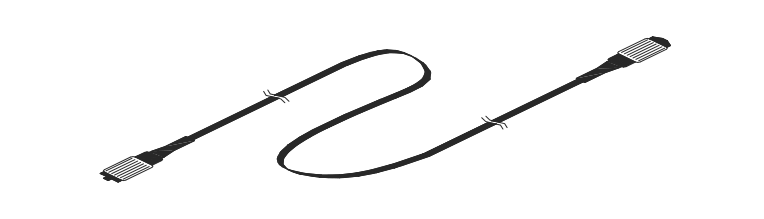

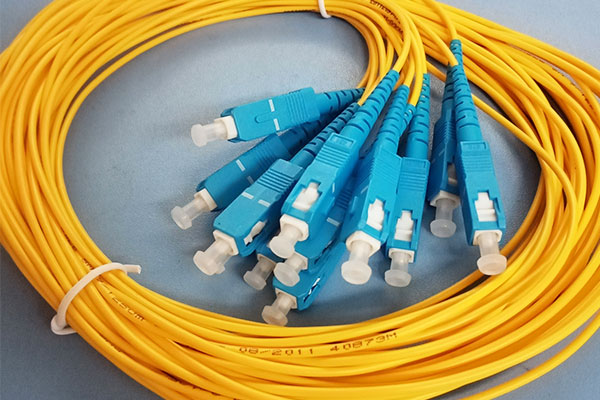

Jumper Wire

Specification:

Item Name	Type of Connector	Remarks
jumper cord(double-end)	FC/PC/ST/APC	10m double-end
pigtail (double-end)	FC/PC/ST/APC	5m single-end
adapter	FC/PC/ST/APC

Product Information

Function:

NO.	Items		Test Condition	dB PC
1	Optical performance	Max. Insert loss	1.55μm optical source	<0.3
1	Optical performance	Min. Reflection loss	1.55μm optical source	≧45
2	Mechanical performance	interchangeability	arbitrary	<0.2
		vibration	10-58Hz, 1.5mm	<0.2
		repeated insert	more than 1000times	<0.2
		tensile strength	10kg	<0.2
3	Environmental performance	Max.	consecutive +85℃ for 100h	<0.2
		Min.	consecutive +40℃ for 100h	<0.2
		temperature cycling	-40℃~+85℃, cycling	<0.2
		Humidity	+25℃~-65℃93%K.H.100h	<0.2
