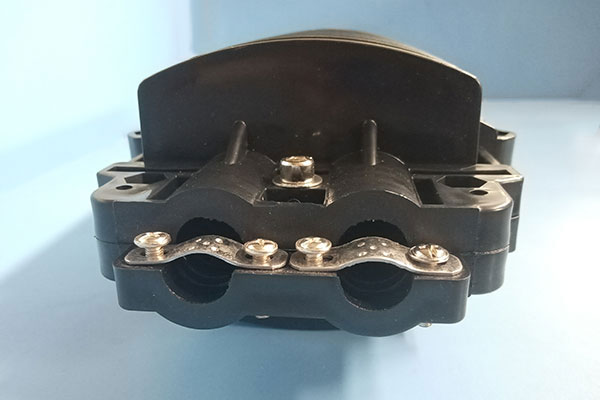

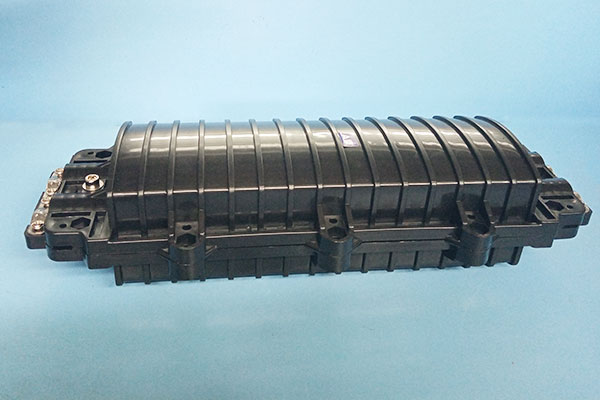

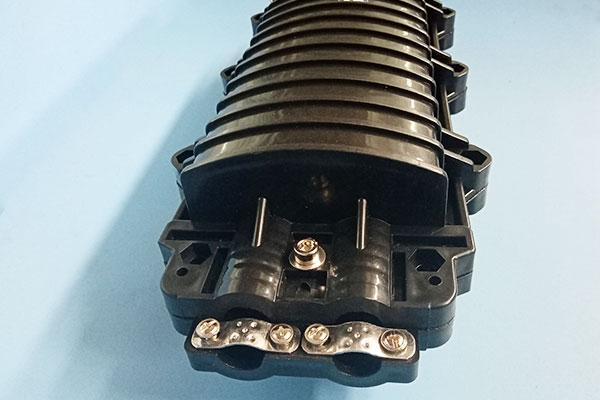

Middle Joint Box PVC Splicing Closure

Description:
1.Splicing and protection for OPGW/ADSS cables.
2.Good sealing and anti-corrosion protects cables inside from damage of outdoor circumstances.
Characteristic:
1. Housing material: High-strength PC. With its tight mechanical structural, corrosion resistance, ageing resistance, it can be used in harsh environment for long period.
2. Light-weight and big-capacity. Easy installation and maintenance, excellence in seal.
3. Applicable for: ADSS cable, fiber optic cable.
4. Apply to approach of under shaft, underground installation, wall-mounting, overhead line installation.
5. Service life: more than 30 years.

Product Information

Mateiral: PVC
Operating condition:
1. Operating temperature: -45～+80℃
2. Relative humidity: ≤95%（+40℃）
3. Atmospheric pressure: 70-110KPA
4. Insulation resistance≥2×104MΩ
Technical requirement:
Resistance≥2×104ΜΩ
1. Dielectric strength: 15kV(DC)/ 1min, non- breakdown, non-arcing.
2. Winding radius of curvature: ≥40mm
3. tensile strength≥2000N
4. Capacity: 12 F/ 24F
5. Pole-mounting or Tower-mounting

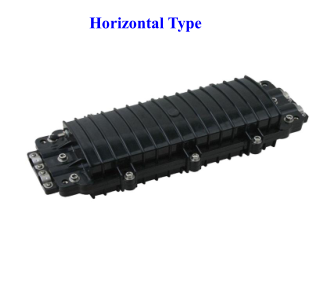

PVC Splice Closure:

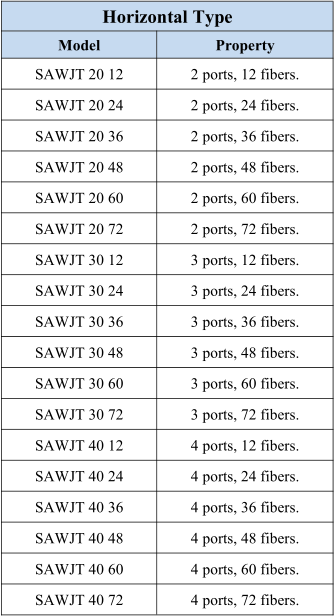

Specification:
