Description:
Used in optical fiber communication machine room wiring equipment, to fixed, splice the cable, and protect the pigtail.
Characteristic:
1. Applicable for banding or non-banding optical cables
2. Cold-rolled steel box with normal size of 19 inches can be installed onto a 19 inches support frame.
3. Mountable for kinds of adapters such as FC, SC, ST, LC, etc.
4. Capacity:12-144 F
5. Full-service of protection on jumper, keeping the bend radius not less than 40mm.
Technical requirement：
1. Operating temperature:-40℃～+60℃
2. Relative humidity: ≤90%(+30℃)
3. Inserting duration life>1000 times
4. Inserting loss of fiber optic connector: ≤0.3dB
5. HV protection, insulation resistance between frames＞20000MΩ/min, non- breakdown, non-arcing.
Performance：
The product uses the pure aluminum sheet.
The product has the surface spurting processing.
It may install FC, SC , ST, LC, adapters according to the requirement.

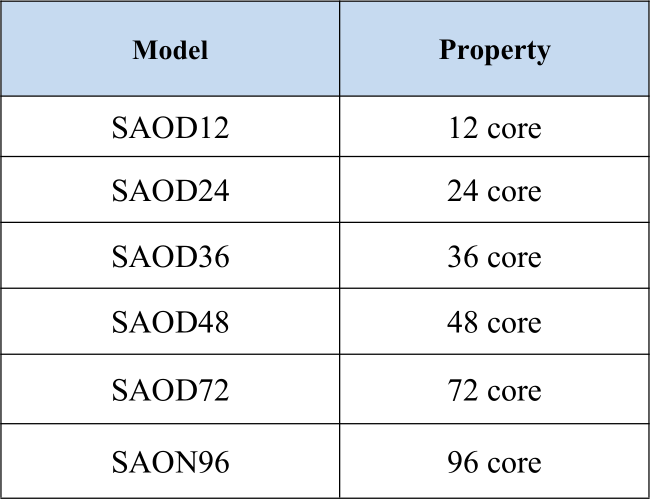

Specification:
