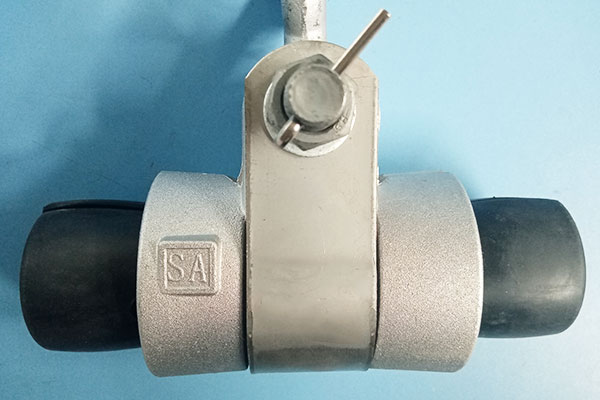

OPGW Suspension Clamp

OPGW Suspension Clamp

Description:
1. For attachment the cables to the suspension poles and towers in overhead power transmission line.
2. Distribute the stress equally among the surface of cables, to protect the cables from damage caused by the stress concentration, and to extend the service life of the cables.

Product Information

Material:

Intra-Helical armor rods: Al. Alloy

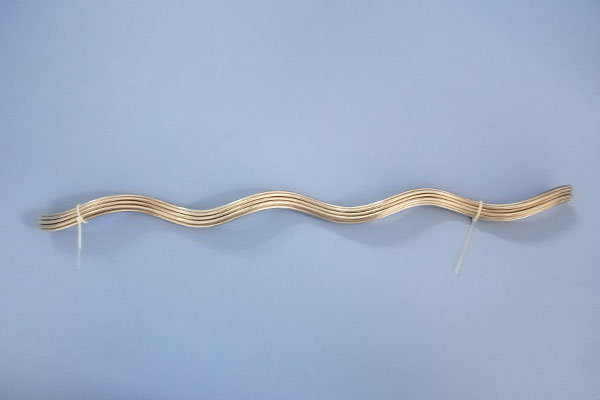

Outer-Helical armor rods: Al. Alloy
Suspension Head: Al. Alloy
Neoprene Insert: Neoprene-RE
U-shackle with Screw: Standard Component
Bolt: Hot Dip Galvanizing Standard Component
Earth Wire: Aluminium Alloy Wire

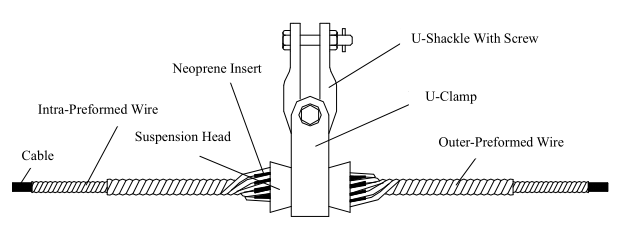

Suspension Clamp For ADSS/OPGW:

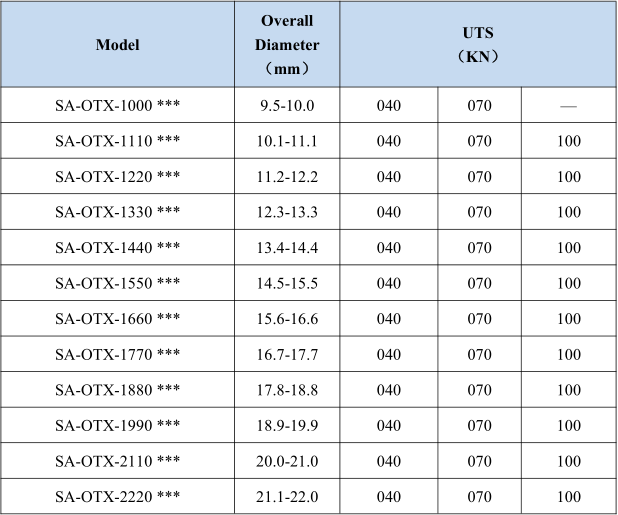

Specification:

                                           Suspension clamp for OPGW

Note: * represents the breaking strength

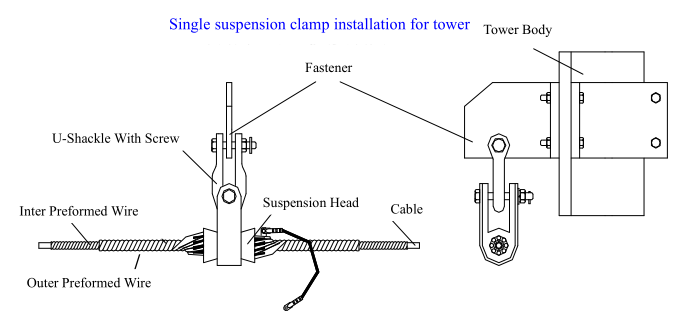

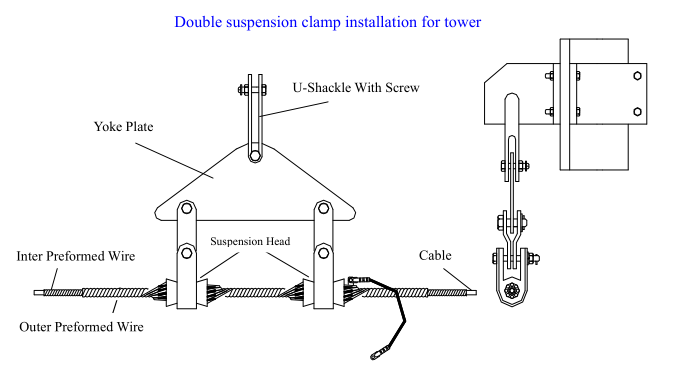

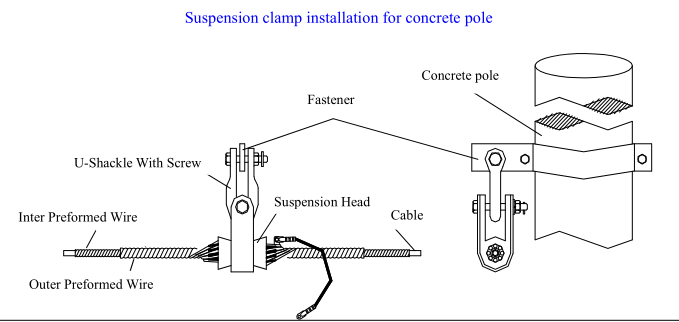

Suspension Clamp Installation for OPGW:
