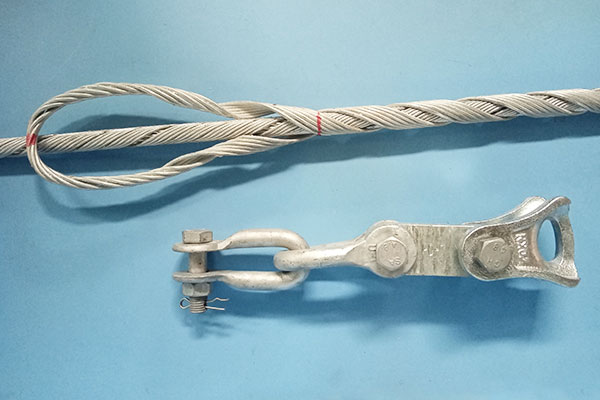

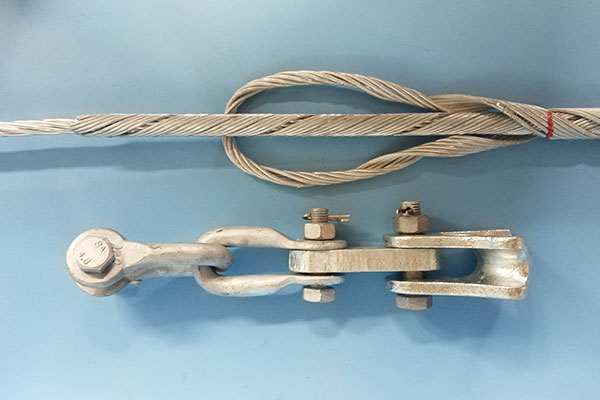

Tension Clamp

Description:
1. For attachment cables to the poles and towers in overhead transmission line.
2. Perfect protection to the cable, relieve the aerial vibration, extend the service life of the cable.
Characteristic:
1. Excellent mechanical and electrical feature and good at anti-corrosion.
2. Simple installation
3. Full range of dimensions and specifications applying for various of span and voltage grade.

Product Information

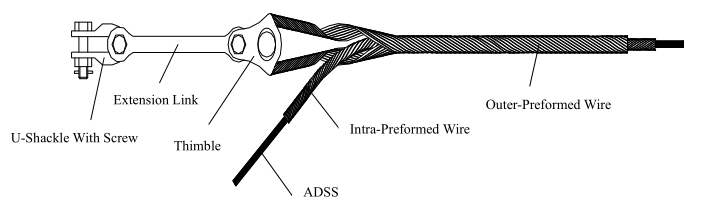

Material:

Intra-Preformed helical rods: Al-Clad Steel Wire

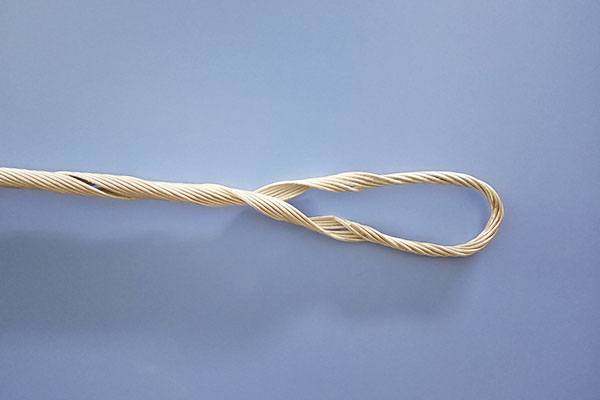

Outer-Preformed helical rods: Al-Clad Steel Wire

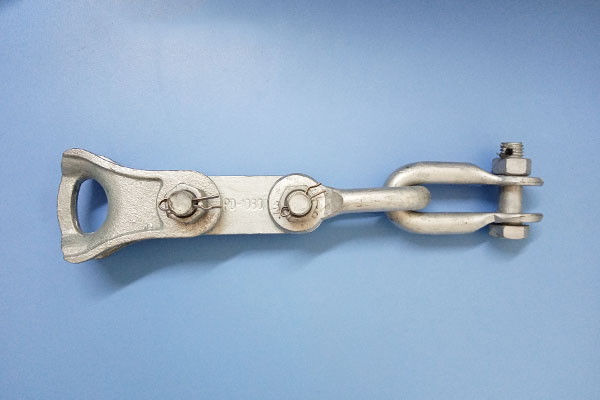

Thimble: Hot Dip Galvanized Steel
U-shackle With Screw: Standard Component
Parallel-plate: Standard Component
Earth Wire: Aluminium Wire
Parallel Groove Clamp: Aluminium Alloy
RTS(KN): 70,100,120,160

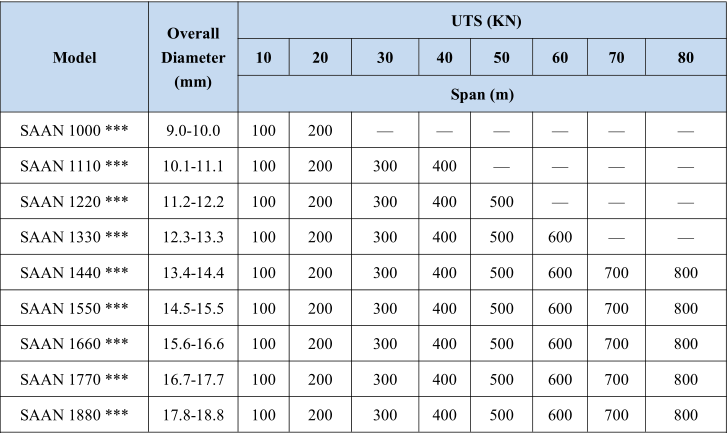

Tension Clamp For ADSS:

Specification:

Note: 1. * represents the breaking strength.
              2. Customized is available when over 80KN or 800m span.

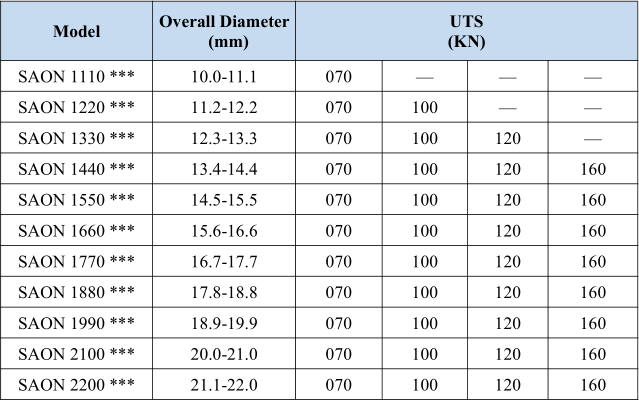

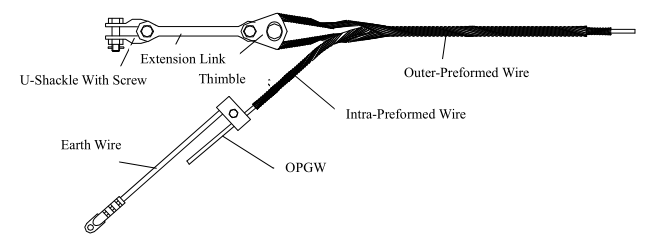

Tension Clamp For OPGW:

Specification:

Note: * represents the breaking strength

Tension Clamp Installation for ADSS:

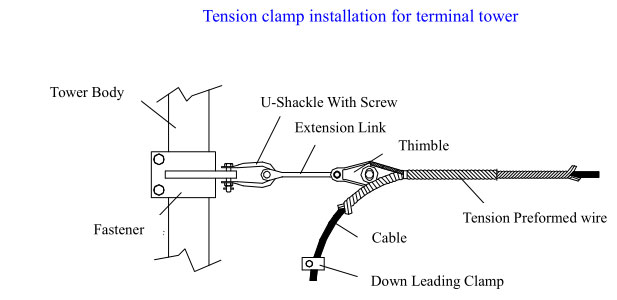

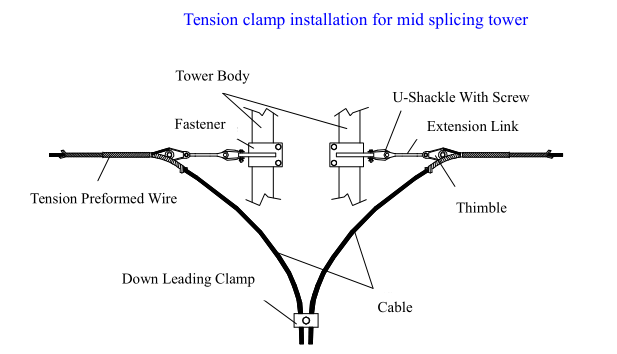

Installation on tower

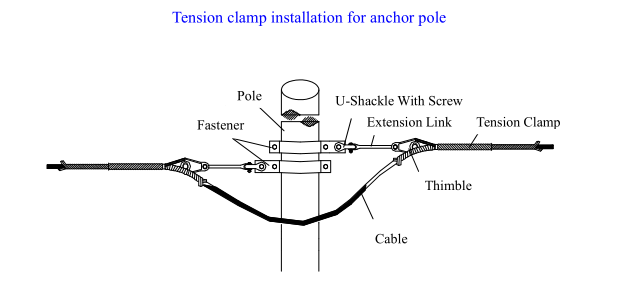

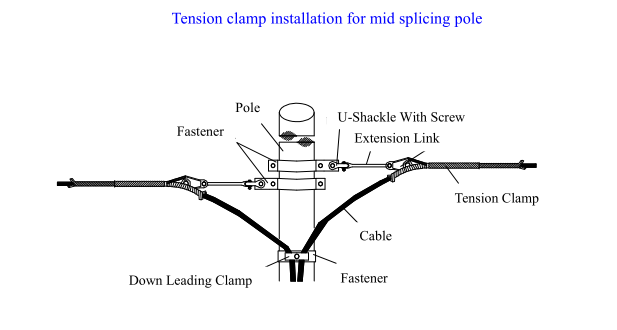

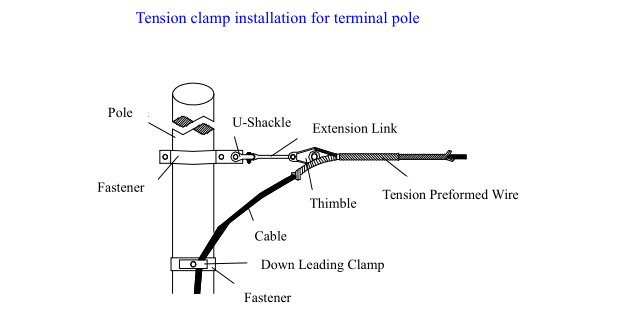

Installation on pole

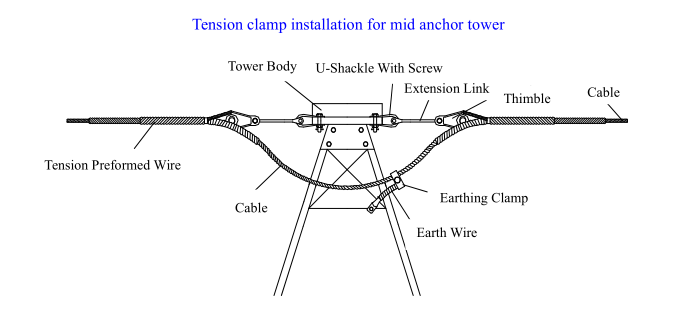

Tension Clamp Installation for OPGW:

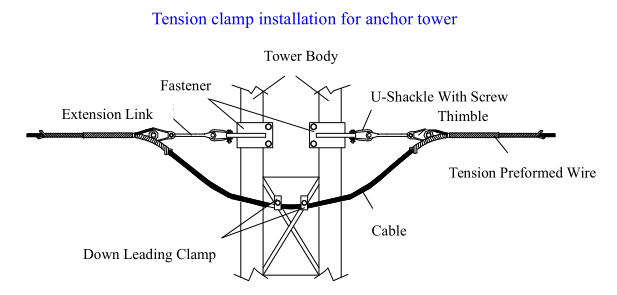

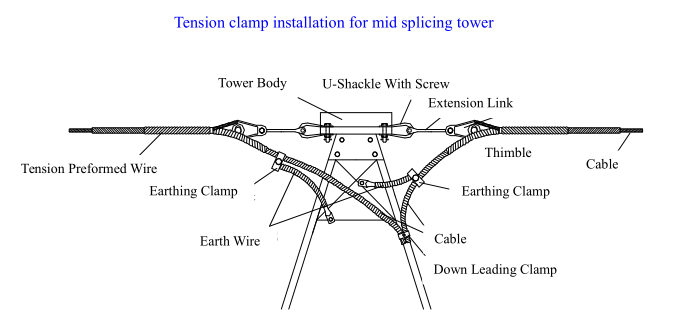

Installation on tower
